Plastic Core — 3" & 6" Standard Sizes · ABS · HDPE · Custom Lengths
LEZ is a key and professional supplier in the extrusion of plastic core tubing,a compete range of different diameters and materials complying to the strictest requirements in such sectors as film cores(PE/POF film),label cores,medical supplier,cleanrooms cores and many others.
- Product description
- Specifications
- Application
- Related Products
Plastic Core
Precision-Extruded Winding Cores in ABS · HDPE
Standard 3" and 6" inner diameter cores for winding film, tape, paper, and textiles. Custom wall thickness, length, color, and surface finish. 7-15 day lead times.
The Core of Your Roll Product

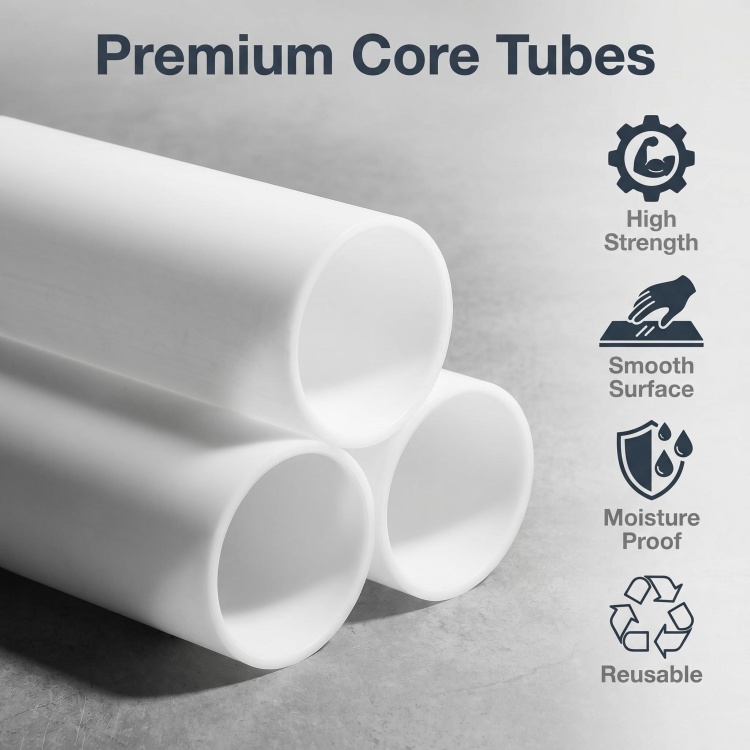

A plastic core is the cylindrical winding tube at the center of every roll of film, tape, paper, or textile. It determines how evenly your material winds, how stable it remains during transport, and how smoothly it unwinds on your production line. A poorly made core leads to telescoping, winding deviation, and material waste.

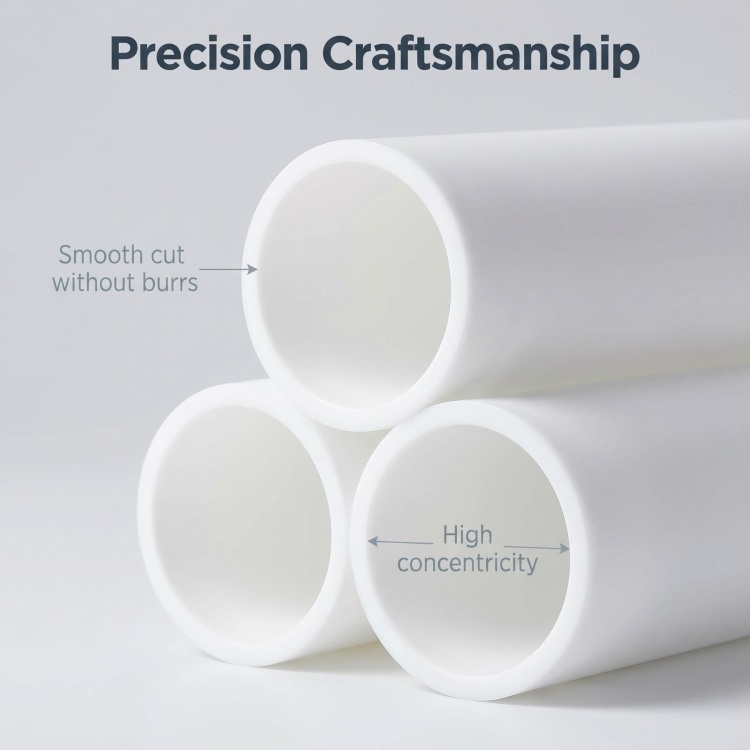

We manufactures precision-extruded plastic cores in ABS, HDPE and custom compounds. Our cores are produced to tight dimensional tolerances with consistent wall thickness and smooth interior surfaces — eliminating dust generation and protecting high-value films during winding.
The two most common industry sizes are 3-inch (76.2mm ID) and 6-inch (152.4mm ID) inner diameter. We stock these in multiple wall thicknesses and can cut to any length from 2mm to 450mm. Custom diameters, ribbed interiors, notching, and double-sided starter tape application are available.
Why Core Quality Matters
Core material selection depends on your winding tension, chemical exposure, temperature, and cleanliness requirements. We extrude in all major thermoplastics and can recommend the optimal grade for your application.
ABS
Rigid, dimensionally stable. High precision injection-grade. Ideal for cleanroom and electronic film cores.
Wall: 4-12mm · Ribbing available
HIPS
High-impact polystyrene. Economical, lightweight. Excellent for general-purpose film and tape winding.
Wall: 2-10mm · Standard choice
HDPE
Moisture-resistant, chemically inert. Flexible yet strong. Suitable for outdoor and wet-environment winding.
Wall: 2.8-5mm · Cost-effective
PVC
Rigid, flame-retardant, excellent chemical resistance. Used for industrial tape and protective film cores.
Wall: 2.8mm+ · VP75/VP150
PP
Higher temperature tolerance than PE. Weldable and autoclavable. Suitable for medical and laboratory film cores.
Wall: 2-8mm · Autoclavable
3-inch (76.2mm) and 6-inch (152.4mm) inner diameter cores are the two dominant sizes across film, tape, paper, and textile industries. Below are our standard wall thickness options for each. All cores can be cut to your required length.

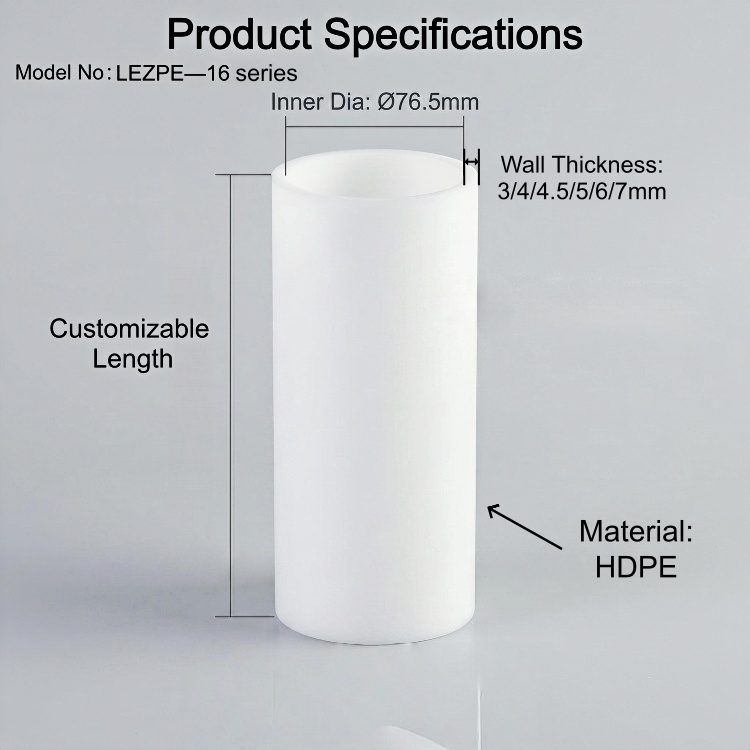

3-INCH CORE (76.2mm Nominal ID)
| Wall Thickness | Inner Diameter | Outer Diameter (Ref.) | Material | Length Range |
|---|---|---|---|---|
| 3.0mm | 76.2mm | 81.8mm | ABS · PE | 100 – 1500mm |
| 4.0mm | 76.2mm | 84.2mm | ABS · PE | 100 – 1500mm |
| 5.0mm | 76.2mm | 86.2mm | ABS · PE | 100 – 1500mm |
| 6.0mm | 76.4mm | 88.4mm | ABS · PE | 100 – 1500mm |
| 7.0mm | 76.4mm | 90.2mm | ABS · PE | 100 – 1500mm |
| 8.0mm | 76.2mm | 92.2mm | ABS · PE | 100 – 1500mm |
| 10.0mm | 76.4mm | 96.4mm | ABS · PE | 100 – 1500mm |
6-INCH CORE (152.4mm Nominal ID)
| Wall Thickness | Inner Diameter | Outer Diameter (Ref.) | Material | Length Range |
|---|---|---|---|---|
| 6.0mm | 152.4mm | 163.4mm | ABS · PE | 50 – 1000mm |
| 8.0mm | 152.4mm | 168.4mm | ABS · PE | 50 – 1000mm |
| 10.0mm | 152.4mm | 172.4mm | ABS · PE | 10 – 1000mm |
| 12.0mm | 152.4mm | 176.4mm | ABS · PE | 50 – 1000mm |
| 15.0mm | 152.4mm | 182.4mm | ABS · PE | 50 – 1000mm |
All dimensions in mm · Custom inner diameters from 25mm to 200mm available · Length tolerance ±0.5mm

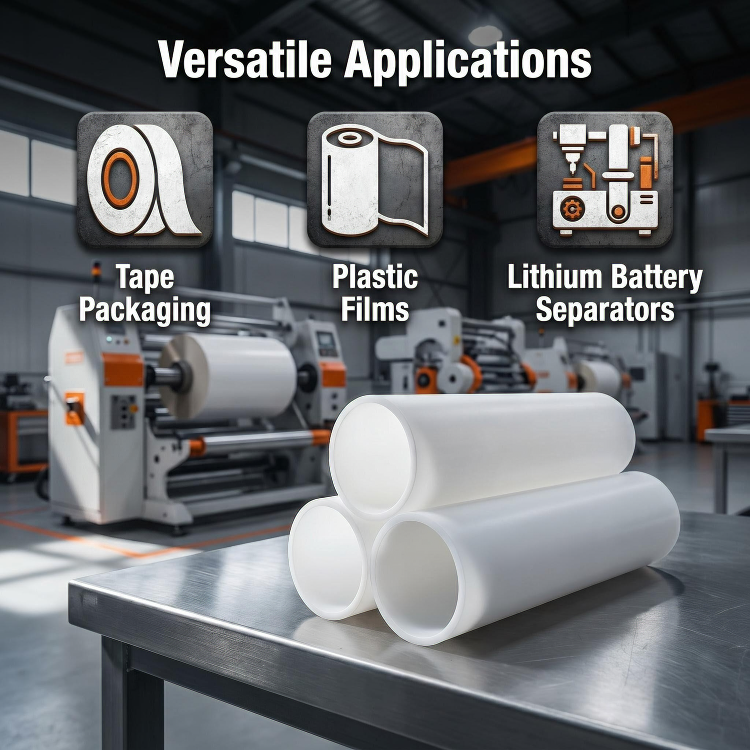

Winding Applications
FILM & FOIL
BOPP · PET · PE film · Protective film · Release film · Optical film · Food packaging film
ADHESIVE TAPE
Packaging tape · Masking tape · Electrical tape · Double-sided tape · Specialty tape
TEXTILE & NON-WOVEN
Fabric rolling · Non-woven materials · Medical gauze · Labels · Paper products
ELECTRONIC MATERIALS
Battery separator film · Flexible PCB carrier · FPC cover tape · Conductive film
MEDICAL & PHARMA
Pharmaceutical packaging film · Medical tape · Sterile barrier film · Diagnostic strip
INDUSTRIAL
Wire & cable winding · Hose & tubing · Geotextile · Agricultural film
Custom Length
Cut to any length from 100mm to 1500mm. Tight length tolerance.
Interior Ribbing
ABS cores available with internal ribs for improved grip and reduced slippage.
Notching & Punching
Custom notches for tape start or mechanical keying on winding equipment.
Starter Tape
Two-sided adhesive starter tape applied to core surface for easy winding initiation.
Custom Color
Any RAL or Pantone color. White, black, blue, green, natural — matched to your brand.
Cleanroom Grade
Washable and dust-free cores for cleanroom film and electronic material winding.
Need Plastic Cores for Your Winding Line?
Free material consultation · Samples available · Custom quote within 24 hours
3" and 6" standard sizes in stock · Custom diameters and lengths available
LEZPC — Plastic Core · Precision Winding Cores for Film, Tape & Textile
Do you need to customize the plastic core pipes?
| Sample & Mold | Q: Can I have a trial order or samples to test the extruded plastic tubing extrusion quality and function?A: Of course! Free samples can be provided if stock parts for plastic rod and plastic bar on your shipping cost. |
| Q: Can you open mold for us to manufacture a new PC extruded round pipe? A: Yes! If the quantity is big, our company can share part of the mold cost, or mold cost can be refundable after repeated orders in the big volume | |
| Delivery Time & | Q: How long is your delivery time? A: Generally it is 3-5 days if goods are in stock. Or it is 20 days for customized profile extrusions according to your quantity. |
| Payment Terms | Q: What is your terms of payment?A: T/T, PayPal, Western-union. |
| About Quotation | Q: How can I get the quotation?A: Please send us information for the quote:drawing, material, application backgroundwe can accept PDF, ISGS, DWG, STEP file format.If you don’t have drawing, please send the sample to us, we can quote base on your sample too. |
