PC vs. PVC vs. ABS: The Ultimate Guide to Industrial Extrusion Material Selection
In the realm of plastic extrusion, Polycarbonate (PC), Polyvinyl Chloride (PVC), and Acrylonitrile Butadiene Styrene (ABS) are the three pillars of industrial profiles. For procurement managers and engineers, understanding the core differences between these polymers is the first step toward project success.
I. Material Deep Dive
? PC (Polycarbonate): The "Transparent Metal"
PC is renowned for its exceptional impact resistance and optical clarity.
- Core Strengths: Impact strength is 250 times that of glass, with excellent heat resistance (withstanding temperatures over 120°C).
- Applications: Ideal for large-width light covers, linear lenses, and protective shields.
&?️ PVC (Rigid): The Versatile Cost-Leader
PVC is one of the most widely used plastics, available in Rigid (U-PVC) and Flexible (P-PVC) forms.
- Core Strengths: Exceptional flame retardancy (V-0 rating) and high cost-competitiveness.
- Applications: Custom industrial profiles, U-shaped/C-shaped shelf protectors, and conduits.
? ABS: The Balance of Toughness and Aesthetics
ABS is a tough, rigid, and dimensionally stable thermoplastic.
- Core Strengths: Low shrinkage for precise dimensions and a refined matte surface finish.
- Applications: Electronic enclosures, decorative strips, and structural components.
II. Performance Comparison Matrix
| Metric | PC (Polycarbonate) | PVC (Rigid) | ABS (General Grade) |
|---|---|---|---|
| Transparency | Extreme (89%+) | Mid / Translucent | Opaque |
| Impact Strength | Excellent | Standard | Strong |
| Heat Deflection | 125 - 135 °C | 60 - 70 °C | 85 - 95 °C |
| Flame Rating | V-2 (Custom V-0) | V-0 (Inherent) | HB (Modifiable) |
| Relative Cost | Premium ($$$) | Low ($) | Mid ($$) |

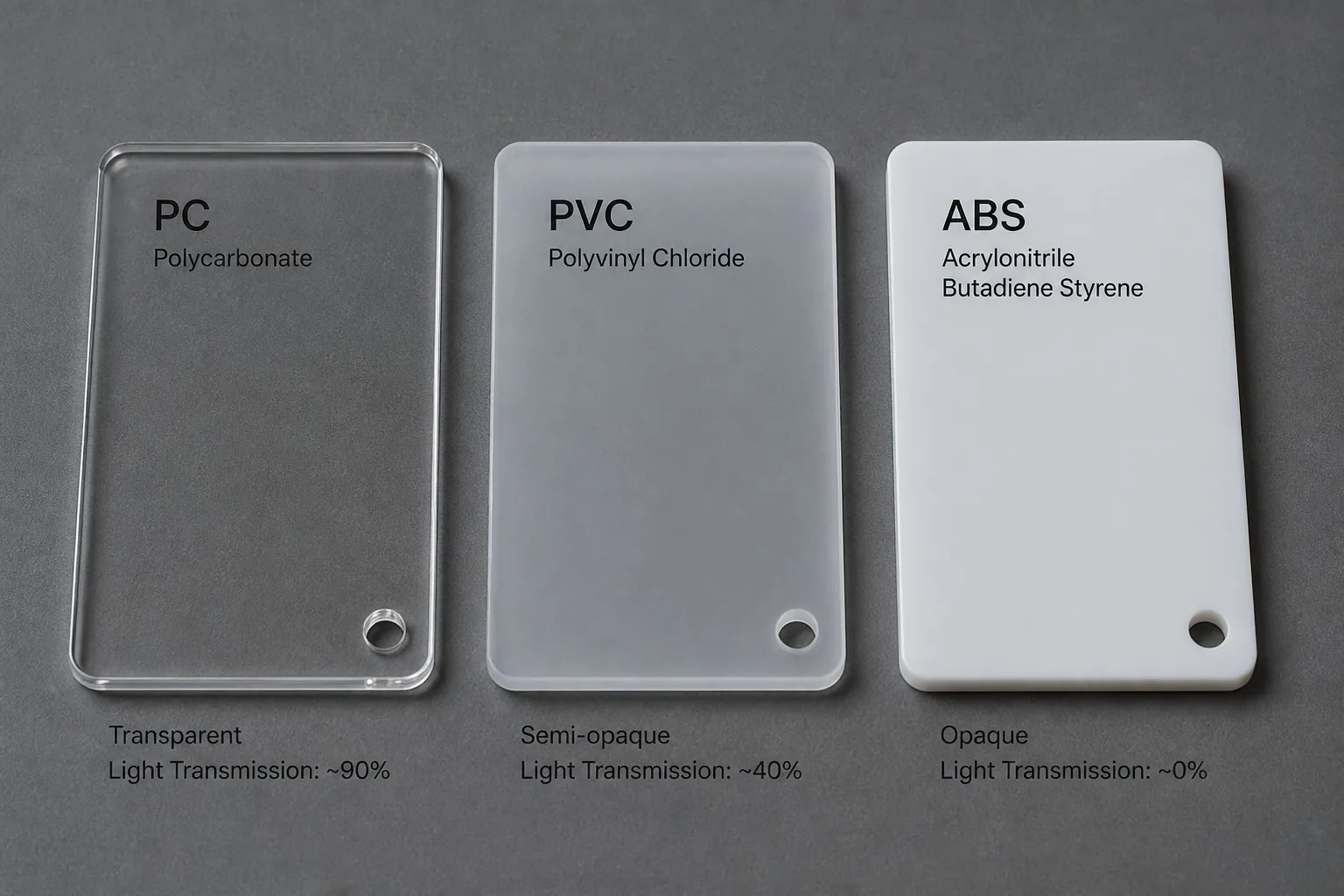

Figure 2: Texture comparison from transparent PC to opaque ABS.
III. Expert Advice for Your Project
Choosing the right material depends on your specific environment. If you need optical clarity and heat resistance, PC is non-negotiable. For budget-sensitive construction or shelf protection, PVC wins. For precise mechanical enclosures, ABS is the optimal choice.
