Polycarbonate Extruded Tube | Clear PC Tubing for Industrial & OEM Applications – LEZPC
We're supplying more than 100+ sets of ready-made molds of various specifications,capable of producing the polycarbonate tubes with external diameters up to 150mm, all products are available from PC round/Oval or square shape tubes in various colors and specifications
With high transparency,the PC (polycarbonate) tubing has perfect light transmission when used in lamps and lanterns,also an good ideal material for certain other industry structural applications.
- Product description
- Video
- Specifications
- Application
- Related Products

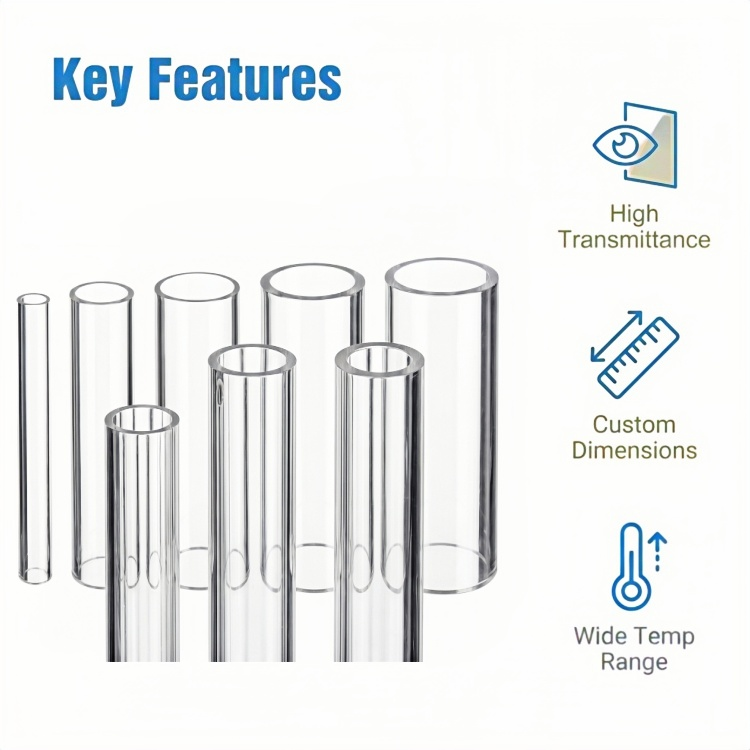

Polycarbonate Extruded Tube
Clarity of Glass · Impact Resistance of Metal · Half the Weight
Precision-extruded PC tubing for machine guards, sight gauges, protective enclosures, LED lighting, fluid handling, and structural OEM components. Available in Ø5mm to Ø300mm, UL 94 V-2 / V-0 rated.
Engineered for Demanding Industrial Environments
Polycarbonate extruded tube delivers a unique combination of optical clarity, mechanical strength, and thermal stability that no other transparent thermoplastic can match. With a tensile strength of approximately 9,500 PSI and impact resistance 250 times greater than glass, PC tubing is genuinely shatterproof — making it the material of choice for machine guards, protective covers, and safety-critical enclosures across aerospace, industrial, and commercial construction sectors.
Unlike acrylic (PMMA), polycarbonate maintains its impact resistance at low temperatures and can withstand service temperatures from -40°F to 280°F (-40°C to 138°C). It does not degrade under UV exposure, making it suitable for outdoor architectural fixtures, marine lighting, and solar housing applications. Polycarbonate can also be autoclaved — a critical advantage for medical and laboratory equipment where repeated sterilization is required.
Our extruded PC tubes are manufactured from UV-stabilized, FDA-compliant resin and are available in clear, opal, and custom tinted formulations. Standard flame-retardant grades achieve UL 94 V-2 rating, with V-0 available on request for the most stringent fire safety requirements.
Material Properties
Polycarbonate extruded tube · Precision cross-section
| No. | OD (mm) | ID (mm) | Wall (mm) | Standard Length | Grade |
|---|---|---|---|---|---|
| 1 | 5 | 3 | 1.0 | 2m / 4m | Standard Clear |
| 2 | 8 | 6 | 1.0 | 2m / 4m | Standard Clear |
| 3 | 12 | 10 | 1.0 | 2m / 4m | Standard Clear |
| 4 | 16 | 13 | 1.5 | 2m / 4m | Standard Clear |
| 5 | 20 | 16 | 2.0 | 2m / 4m | Standard Clear |
| 6 | 25 | 21 | 2.0 | 2m / 4m | Standard Clear |
| 7 | 30 | 26 | 2.0 | 2m / 4m | Standard Clear |
| 8 | 38 | 34 | 2.0 | 2m / 4m | Standard Clear |
| 9 | 55 | 51 | 2.0 | 2m / 4m | Standard Clear |
| 10 | 80 | 76 | 2.0 | 2m / 4m | Standard Clear |
| 11 | 90 | 86 | 2.0 | 2m / 4m | Standard Clear |
| 12 | 100 | 96 | 2.0 | 2m / 4m | Standard Clear |
| 13 | 120 | 116 | 2.0 | 2m / 4m | Standard Clear |
Custom diameters, wall thicknesses, and lengths available · Tolerance: ±0.10mm (OD ≤ 50mm) · ±0.25mm (OD > 50mm)
Industry Applications
INDUSTRIAL & SAFETY
Machine guards · Protective covers · Safety shields · Equipment enclosures · Sight gauges · Fluid level indicators
LIGHTING & OPTICAL
LED tube housings · Fluorescent lamp covers · Light diffusers · Outdoor architectural fixtures · Marine lighting · Solar housings
MEDICAL & LABORATORY
Dialysis components · Infusion pump parts · Surgical supplies · Respiratory devices · Laboratory sight tubes · Autoclavable enclosures
AUTOMOTIVE & TRANSPORTATION
Dashboard components · Lever housings · Light guides · Fuel lines · Interior trim profiles · Refrigerator water lines
CONSTRUCTION & ARCHITECTURE
Structural support tubes · Greenhouse glazing channels · Display enclosures · Signage frames · Bullet-resistant glazing components
FOOD & BEVERAGE
FDA-compliant tubing for food processing · Beverage dispensing lines · Product display tubes · Conveyance components
| Property | Polycarbonate (PC) | Acrylic (PMMA) | Glass |
|---|---|---|---|
| Impact Resistance | 250x Glass | 10x Glass | Baseline |
| Light Transmittance | 87-89% | 92% | 90-92% |
| Max Operating Temp | 120°C | 85-105°C | ~200°C |
| Weight (vs Glass) | 50% | 50% | 100% |
| UV Resistance | Excellent | Good | Excellent |
| Autoclavable | Yes | No | Yes |
Custom Diameters
Any size from Ø5mm to Ø300mm
Wall Thickness
1mm to 10mm · Tight tolerances
Secondary Operations
Cutting · Drilling · CNC machining
Flame Retardant Grades
UL 94 V-0 available on request
Need Polycarbonate Extruded Tube for Your Application?
Free consultation · Technical datasheets · Samples available
LEZPC — Polycarbonate Extruded Tube · Engineering-Grade Thermoplastic Tubing
Do you need to order the extruded custom polycarbonate tubing?
| Sample & Mold | Q: Can I have a trial order or samples to test the extruded plastic tubing extrusion quality and function?A: Of course! Free samples can be provided if stock parts for plastic rod and plastic bar on your shipping cost. |
| Q: Can you open mold for us to manufacture a new PC extruded round pipe?A: Yes! If the quantity is big, our company can share part of the mold cost, or mold cost can be refundable after repeated orders in the big volume | |
| Delivery Time & | Q: How long is your delivery time? A: Generally it is 3-5 days if goods are in stock. Or it is 20 days for customized profile extrusions according to your quantity. |
| Payment Terms | Q: What is your terms of payment?A: T/T, PayPal, Western-union. |
| About Quotation | Q: How can I get the quotation?A: Please send us information for the quote:drawing, material, application backgroundwe can accept PDF, ISGS, DWG, STEP file format.If you don’t have drawing, please send the sample to us, we can quote base on your sample too. |
